Connecting Canon PowerShot G5 X Mark II to the Intervalometer App

Step-by-step instructions for pairing your Canon PowerShot G5 X Mark II with the Intervalometer for Canon app over Bluetooth.

App Store icon App Store Google Play icon Google Play

Before you start

  • When the Intervalometer app first starts, allow Bluetooth access so it can discover and connect to your G5 X Mark II.
  • Allow the app to use location / localisation services when prompted. On many phones this permission is required by the operating system to scan for nearby Bluetooth devices, even though the app does not use your location for tracking.
  • The G5 X Mark II uses a Bluetooth pairing flow through the Wireless communication settings menu, accessed via the Set-up tab.

Pair the G5 X Mark II with the Intervalometer app

  1. Open the Set-up menu.

    Turn on the camera. Press the MENU button, then use the zoom lever to choose the Set-up (wrench) tab, then press the navigation buttons to choose the Set-up 1 sub-tab.

  2. Open Wireless communication settings.

    Press the navigation buttons to select [Wireless communication settings] and press SET.

  3. Open Bluetooth function.

    Press the navigation buttons to select [Bluetooth function] and press SET.

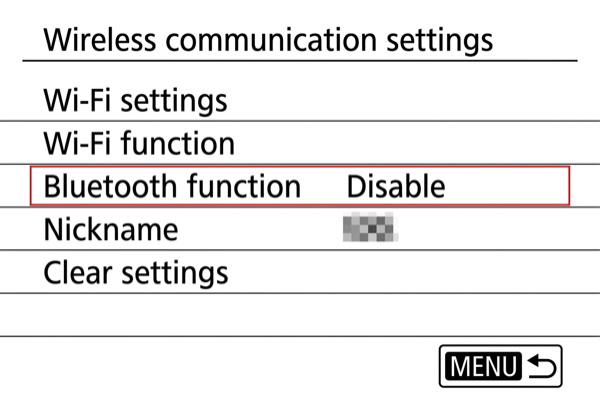

    Bluetooth function menu on PowerShot G5 X Mark II
  4. Select Bluetooth function again.

    Press the navigation buttons to select [Bluetooth function] in the sub-menu and press SET.

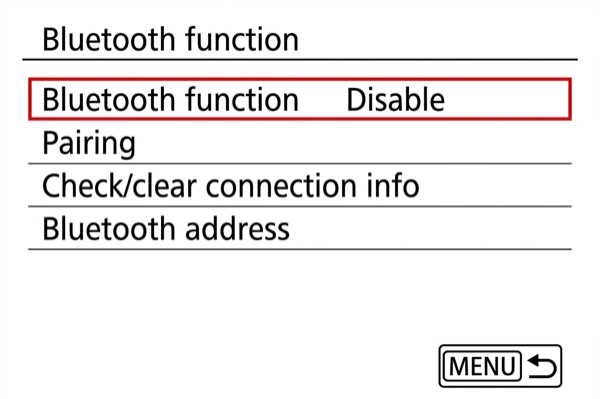

    Bluetooth function sub-menu on PowerShot G5 X Mark II
  5. Choose Smartphone.

    Press the navigation buttons to select [Smartphone] and press SET.

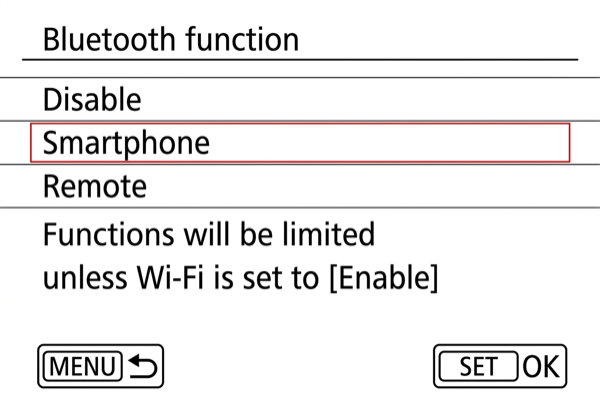

    Smartphone option on PowerShot G5 X Mark II

    If a nickname screen appears, confirm the existing nickname by pressing SET.

  6. Start pairing.

    Press the navigation buttons to select [Pairing] and press SET.

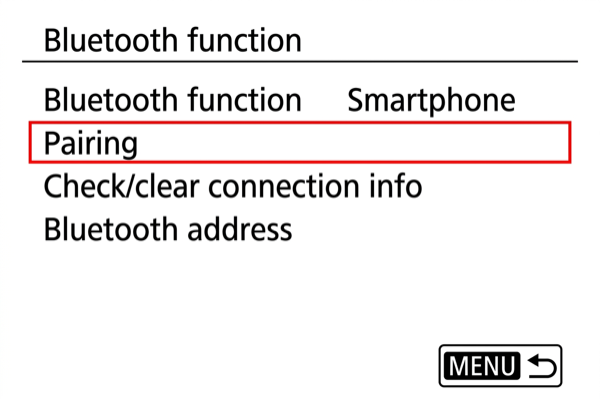

    Pairing option on PowerShot G5 X Mark II
  7. Skip the QR code.

    Press the navigation buttons to select [Do not display] and press SET — the Intervalometer app is already installed.

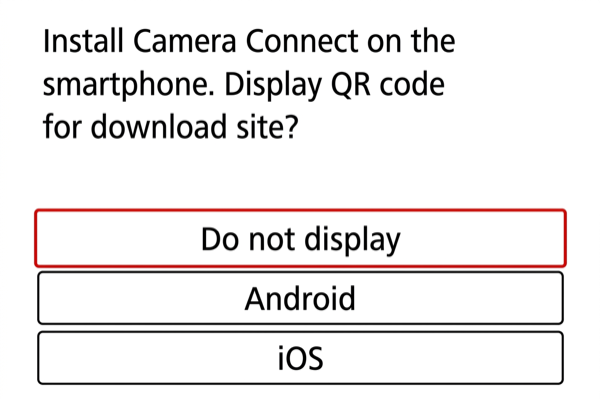

    Do not display QR code on PowerShot G5 X Mark II

    The camera shows a message indicating pairing is in progress.

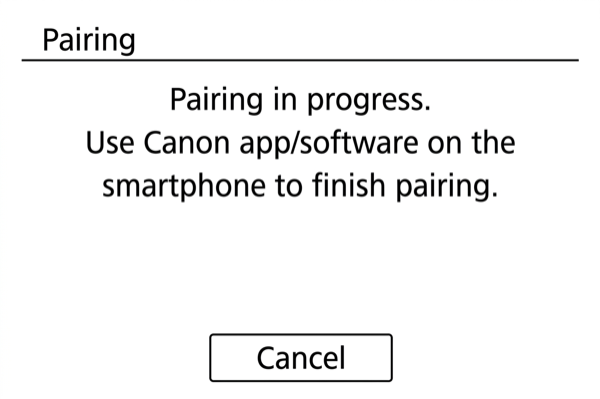

    Pairing in progress on PowerShot G5 X Mark II
  8. Open the Intervalometer app on your phone.

    Make sure Bluetooth is turned on in your phone's Settings, then unlock your phone and start the Intervalometer app for Canon.

  9. Tap "Add new camera" in the app.

    In the main control screen, tap the camera icon in the top-right corner labelled Add new camera.

    Intervalometer app screenshot with Add new camera button highlighted

    The app scans for nearby Bluetooth devices and lists available cameras.

  10. Select your G5 X Mark II from the list.

    Tap the nickname of your G5 X Mark II when it appears in the list to begin pairing.

  11. Confirm Bluetooth pairing on the phone.

    Your phone shows a Bluetooth pairing request. Confirm the request to allow the Intervalometer app to connect to the G5 X Mark II. On iOS, also tap [Pair] when prompted.

    Bluetooth pairing request dialog for PowerShot G5 X Mark II on smartphone
  12. Confirm pairing on the camera.

    Press the navigation buttons to select [OK] and press SET.

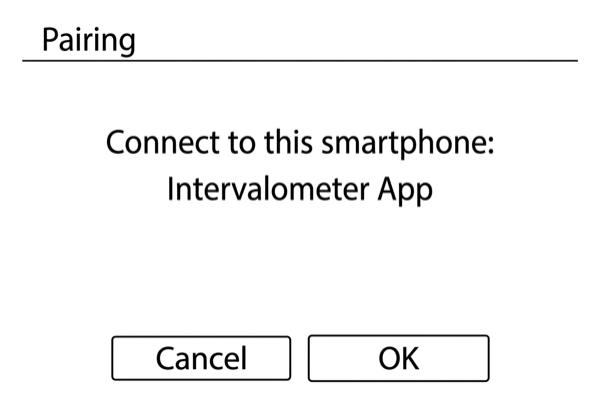

    OK confirmation screen on PowerShot G5 X Mark II

    Press SET on the pairing notification screen to complete pairing.

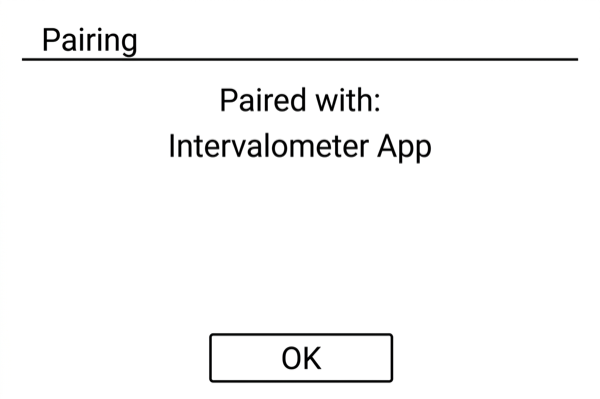

    Pairing complete on PowerShot G5 X Mark II
  13. Start using the Intervalometer app.

    Pairing is complete. Your G5 X Mark II is listed as the active camera in the Intervalometer app, and the main control screen is ready to trigger the shutter.

After pairing

Once the connection is established, you can start and stop exposures from your phone without touching the camera.

  • Set exposure time and interval directly in the app.
  • Use BULB mode on the camera and let the app control how long each exposure runs.
  • Run an open-ended sequence or stop automatically after a chosen number of images.
  • Use the Bluetooth link to minimise camera shake when starting and stopping exposures.

Cancel pairing and start again

If you change phones or run into connection problems, delete the existing pairing and set it up again.

On the G5 X Mark II

  1. Press MENU and go to [Wireless communication settings] → [Bluetooth function].
  2. Select [Check/clear connection info].
  3. Confirm to clear the existing pairing information.

On the smartphone

  1. Open your phone's Bluetooth settings.
  2. Find the entry for your G5 X Mark II and remove or forget the device.

After removing on both sides, follow the pairing steps above to connect from scratch.

Troubleshooting

Phone cannot find the camera

  • Check the camera is showing "Pairing in progress".
  • Check Bluetooth is enabled on your phone.
  • If still not found, cancel pairing on both camera and phone and retry.

Camera shows a different smartphone name or will not pair

  • On the camera, go to [Wireless communication settings] → [Bluetooth function] → [Check/clear connection info] and clear the existing pairing.
  • On your phone, remove old G5 X Mark II entries from the Bluetooth device list.
  • Repeat the full pairing process, including tapping Add new camera in the Intervalometer app.

Intervalometer app does not connect, but camera shows a paired phone

  • Close other camera-control apps (e.g. Canon Camera Connect).
  • Try reconnecting from the app.
  • If the problem persists, delete pairings on both camera and smartphone and start again.

Camera shows "Connection target not found"

  • On the camera, clear the pairing via [Wireless communication settings] → [Bluetooth function] → [Check/clear connection info].
  • Remove the G5 X Mark II from your phone's Bluetooth settings.
  • Start again using Add new camera in the app.

If none of these steps solve the issue, please contact us at help@intervalometer.app and include your camera model, phone model, and a short description of what happens during pairing.
