Connecting Canon EOS R100 to the Intervalometer App

Step-by-step instructions for pairing your Canon EOS R100 with the Intervalometer for Canon app over Bluetooth.

App Store icon App Store Google Play icon Google Play

Before you start

  • When the Intervalometer app first starts, allow Bluetooth access so it can discover and connect to your EOS R100.
  • Allow the app to use location / localisation services when prompted. On many phones this permission is required by the operating system to scan for nearby Bluetooth devices, even though the app does not use your location for tracking.

Pair the EOS R100 with the Intervalometer app

  1. Open the Wi-Fi/Bluetooth connection menu.

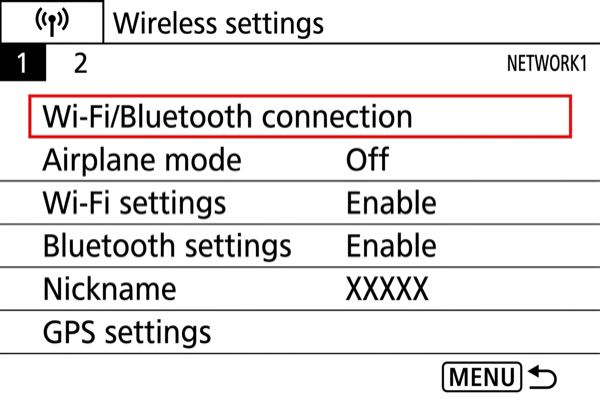

    Press the MENU button and navigate to [Wireless settings: Wi-Fi/Bluetooth connection].

    EOS R100 wireless settings menu
  2. Select Connect to smartphone.

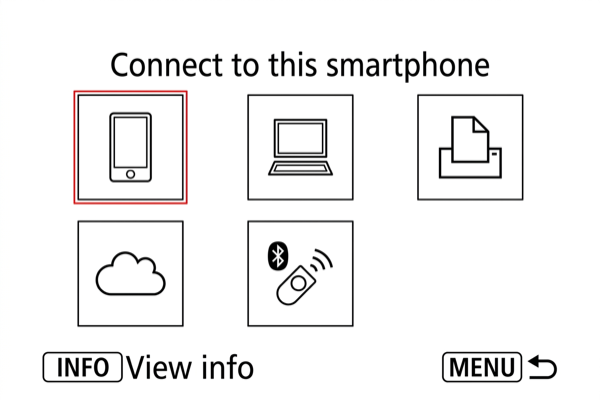

    Select [Connect to smartphone].

    EOS R100 Connect to smartphone option

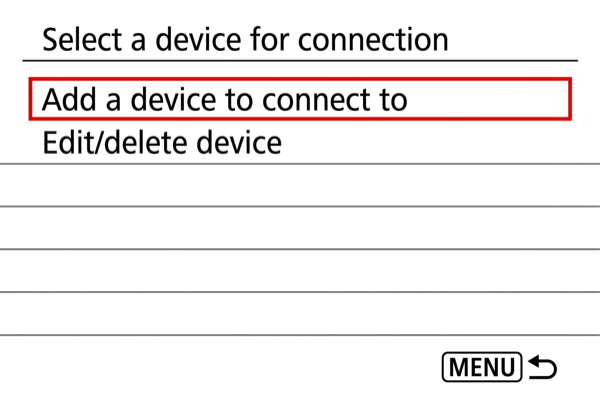

  3. Add a new device.

    Select [Add a device to connect to].

    EOS R100 Add a device to connect to screen
  4. Skip the QR code.

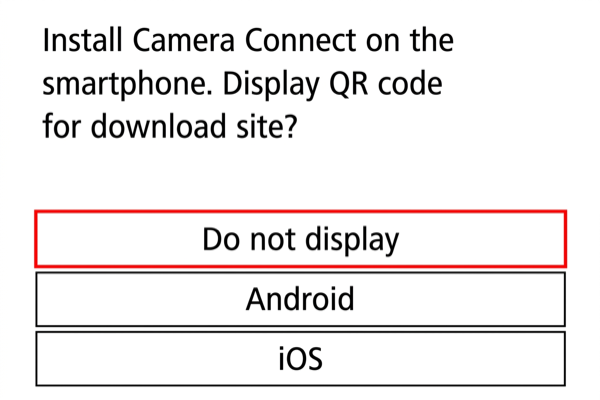

    A screen appears with app installation options. Select [Do not display] to skip the QR code, since the Intervalometer app is already installed.

    EOS R100 app installation options
  5. Select Pair via Bluetooth and start pairing.

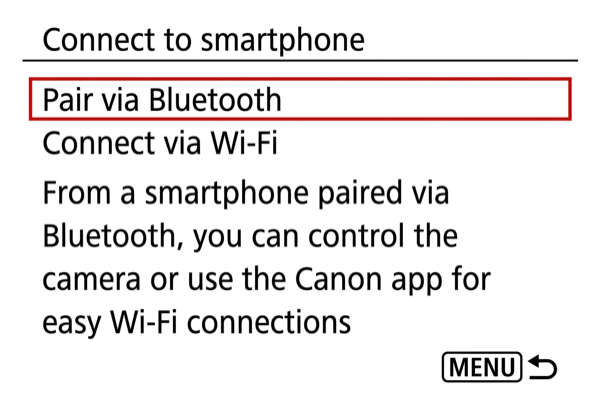

    Select [Pair via Bluetooth], then press the Quick Control/Set button to start pairing.

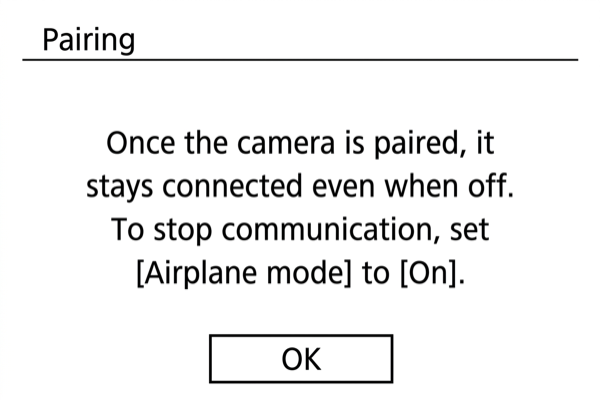

    EOS R100 Pair via Bluetooth option EOS R100 pairing screen

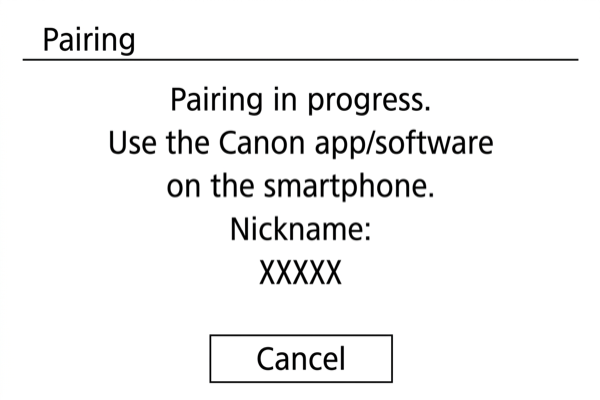

    The camera searches for a Bluetooth device.

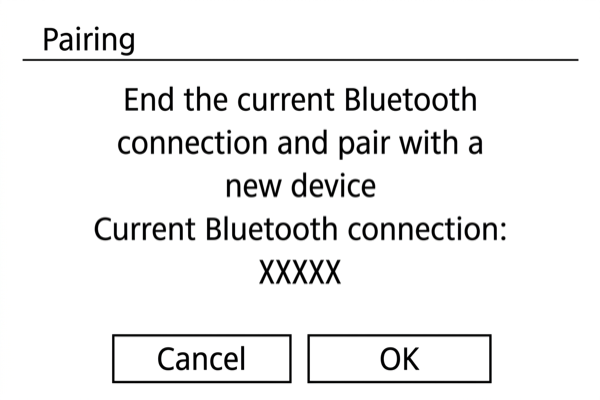

    EOS R100 pairing in progress EOS R100 pairing confirmation screen
  6. Open the Intervalometer app on your phone.

    Unlock your phone and start the Intervalometer app for Canon.

  7. Tap "Add new camera" in the app.

    In the main control screen, tap the camera icon in the top-right corner labelled Add new camera.

    Intervalometer app Add new camera button

    The app scans for nearby Bluetooth devices and lists available cameras.

  8. Select your EOS R100 from the list.

    When your camera appears, tap the entry that matches your EOS R100.

  9. Confirm Bluetooth pairing on the phone.

    Your phone shows a Bluetooth pairing request. Confirm the request.

    Bluetooth pairing request dialog on smartphone

    The camera shows an OK confirmation screen.

  10. Confirm pairing on the camera.

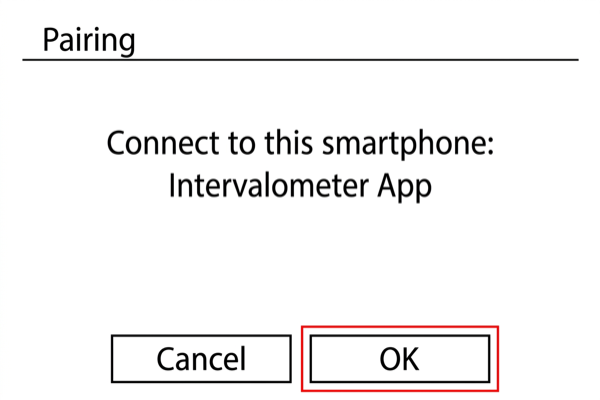

    Select [OK] on the camera screen, then press the Quick Control/Set button.

    EOS R100 OK confirmation during pairing
  11. Check that pairing is complete.

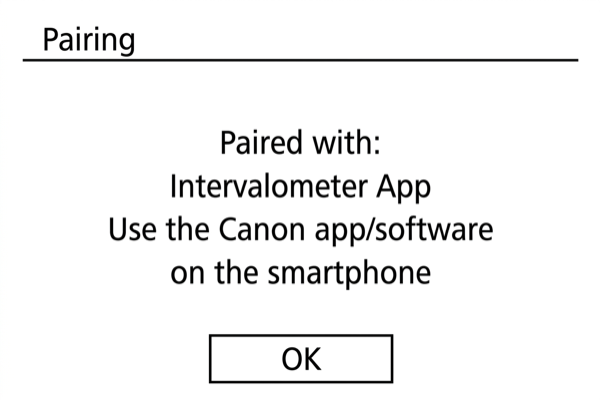

    The camera displays the pairing complete screen.

    EOS R100 pressing Quick Control to complete pairing

    In the Intervalometer app, your EOS R100 is listed as the active camera, ready to trigger the shutter.

  12. Start using the Intervalometer app.

    You are now ready to use the Intervalometer app as a Bluetooth remote and interval timer for your EOS R100.

After pairing

Once the connection is established, you can start and stop exposures from your phone without touching the camera.

  • Set exposure time and interval directly in the app.
  • Use BULB mode on the camera and let the app control how long each exposure runs.
  • Run an open-ended sequence or stop automatically after a chosen number of images.
  • Use the Bluetooth link to minimise camera shake when starting and stopping exposures.

Cancel pairing and start again

If you change phones or run into connection problems, delete the existing pairing and set it up again.

On the EOS R100

  1. Press MENU and navigate to [Wireless settings: Wi-Fi/Bluetooth connection] → [Connect to smartphone].
  2. Select [Edit/delete device].
  3. Choose the smartphone to remove.
  4. Select [Delete connection information] and confirm with [OK].

On the smartphone

  1. Open your phone's Bluetooth settings.
  2. Find the entry for your EOS R100 and remove or forget the device.

After removing the pairing on both camera and phone, follow the steps in the pairing section above to connect the Intervalometer app again from scratch.

Troubleshooting

Phone cannot find the camera

  • Make sure the camera is on the pairing screen after selecting [Pair via Bluetooth] and pressing the Quick Control/Set button.
  • Check that Bluetooth is enabled on your smartphone and that the EOS R100 Bluetooth setting is set to [Enable].
  • If the camera still does not appear, cancel pairing on both camera and phone, restart both devices, and try again.

Camera shows a different smartphone name or will not pair

  • On the camera, open [Wireless settings: Wi-Fi/Bluetooth connection] → [Connect to smartphone] and use [Edit/delete device] to delete any smartphones you no longer use.
  • On your phone, remove old EOS R100 entries from the Bluetooth device list.
  • Repeat the full pairing process, including tapping Add new camera in the Intervalometer app.

Intervalometer app does not connect, but the camera shows a paired phone

  • Ensure no other app is trying to control the camera in the background. If you use Canon's own remote control app, close it completely before using the Intervalometer app.
  • In the Intervalometer app, tap your camera entry or use the reconnect option to establish the Bluetooth link again.
  • If the problem persists, delete the pairing on both camera and smartphone (as described above) and set it up again from scratch.

Camera shows "Connection target not found"

  • On the camera, remove the existing phone entry under [Wireless settings: Wi-Fi/Bluetooth connection] → [Connect to smartphone] → [Edit/delete device] by selecting your phone and choosing [Delete connection information].
  • On your phone, open Bluetooth settings and remove / forget the EOS R100 entry.
  • Start the pairing process again from the beginning and, in the Intervalometer app, use Add new camera to scan for the EOS R100 and add it as a new device instead of tapping connect on an old entry.

If none of these steps solve the issue, please contact us at help@intervalometer.app and include your camera model, phone model, and a short description of what happens during pairing.
